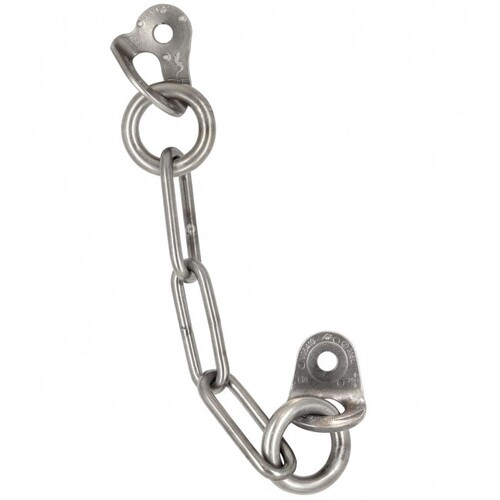

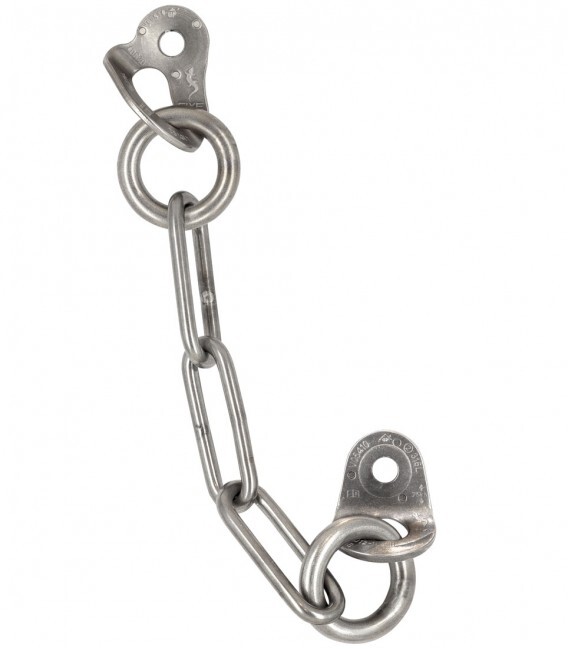

Belay Station Type D in 316L stainless steel  for outdoor environment
Two fixing points consisting of hanger Fixe1  at the top end and   Fixe 2  at lower end, both of them for  M10 bolts

Hanger Fixe 1 - Geometry:

  • Rounded inner edge for less wear on the carabiners.
  • Directs the carabiner for an optimal roof work.
  • Conical Washer. Better control of the tightening torque.
  • Three anti-rotation pins.
  • Optimized surface for full contact.

Fixe 1 - Hanger features:

  • For bolts  M10
  • Weight:  57g (10mm).
  • Breaking strength: 25kN.
  • Material: 316L stainless steel.

Fixe 2 - Hanger features:

  • Contact point with the oval-shaped ring. Increases the lifespan of the ensemble.
  • Conical Washer. Improves the tightening torque.
  • Three anti-rotation pins.
  • For bolts M10
  • Breaking strength: 25 kN.
  • Material: 316L stainless steel.

Ring features:

  • Ring always present between components for a better workability.
  • TIG welding. Better resistance to corrosion.
  • Inside diameter 33mm.
  • Breaking strength: 25kN.
  • Material: 316L stainless steel.

 Features of the 316L stainless steel-chain:

  • TIG welding. Better resistance to corrosion.
  • Reduction of the number of links to three. Less critical points.
  • 7mm link-rod diameter.
  • Useful length: 185mm.
  • Breaking strength: 25kN.
  • Material: 316L stainless steel.

Designed and manufactured in Barcelona-Pyrenees.


(V40210)

SKU V40210
Brand FIXE
